Electroplating rectifier 3000A High Frequency DC Switching
Power supply for electroplating
The basic knowledge on the switching power supply:
The switching power supply is a kind of power conversion equipment, it uses the semiconductor power device as the switching element, adopts the closed loop control mode, possesses the function of automatic protection and realize the power conversion. The main feature is that the main circuit works in on-off state with a high switching frequency.
Electrical parameters of 3000A-12V power supply
Input Voltage
3-phase AC380V±10%,50HZ.
Input Current
61A
Input Power
40KW
Output Power
36KW
Output Voltage
0~12V
Output Current
0~3000A
Voltage Regulation
<±1%
Current Regulation
<±1%
Rated efficiency
>90%
Power factor
<0.90
Ripple coefficient
>3%
Output waveform
High frequency pulse square wave
I/O Interface
RS485 (must be specified when ordering)
Operating environment
-15~40℃
Storage temperature
-20~50℃
Insulation resistance
Input - output:>5MΩ;
Input - housing:>5MΩ;
Output - housing;>5MΩ;
Insulation strength
Input - output:AC1500V,10mA,one minute;
Input - housing:AC1000V,10mA,one minute;
Insulation class
Class B
Protection degree
IP20
Cooling system
Forced air-cooled
Operating condition
24-hour operation at full load
Protection mode
Prompts for phase failure, overheating, overcurrent and fault protection.
Price Terms︰
FOB Shanghai, Ningbo
Payment Terms︰
TT
Lead Time︰
12 days
Standards Certificate︰
CE, ISO9001

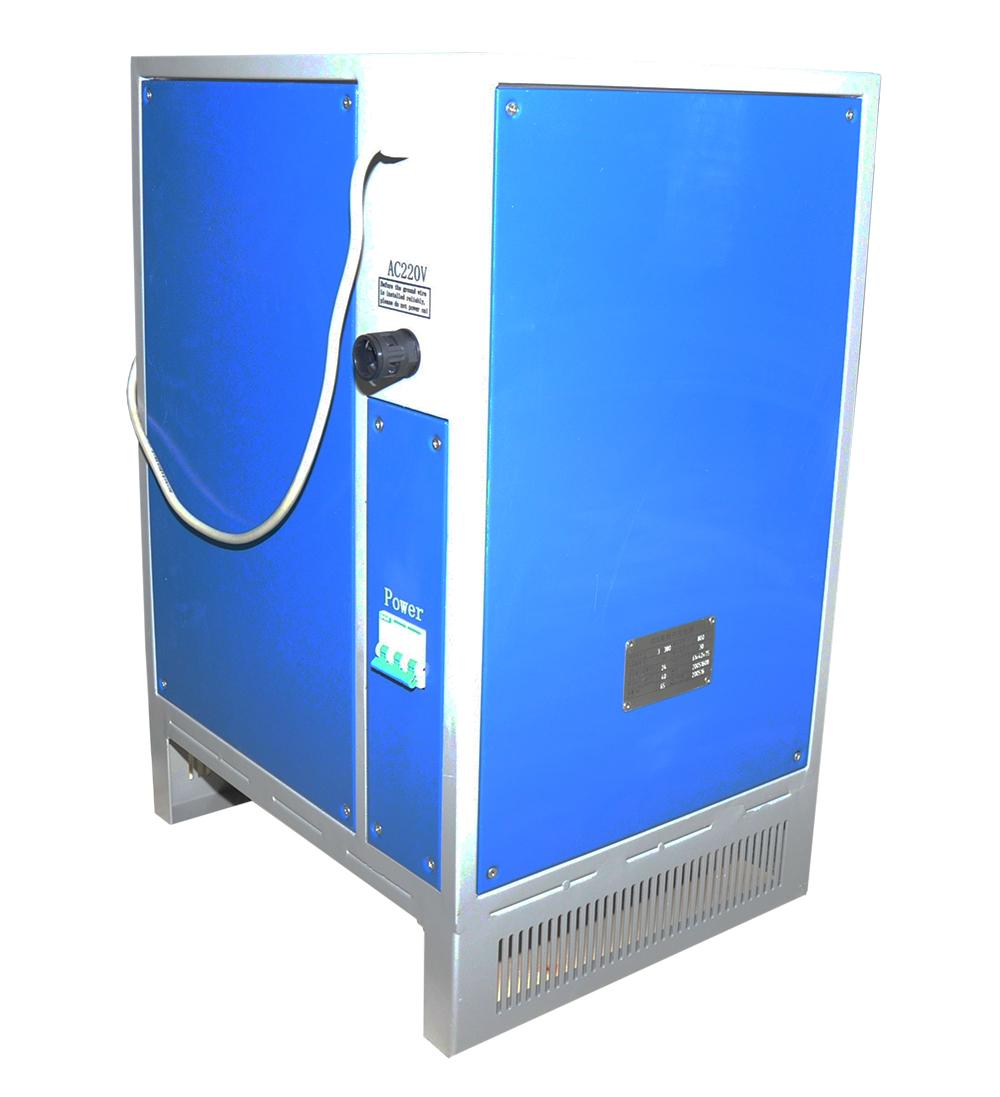

Product Image
electroplating rectifier 3000A High Frequency DC Switching Power supply for electroplating
electroplating,anodizing switching power supply with IGBT rectifier 12v 3000A
