electroplate power supply 10000A/15VDC ac to dc power supply for electroplating

Model No.︰

PWH10000A/15V-S

Brand Name︰

SANDI

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

1 pc

Share on:

Product Description

electroplate power supply 10000A/15VDC ac to dc power supply

for electroplating



The basic knowledge on the switching power supply

      The switching power supply is a kind of power conversion equipment, it uses the semiconductor power device as the switching element, adopts the closed loop control mode, possesses the function of automatic protection and realize the power conversion. The main feature is that the main circuit works in on-off state with a high switching frequency.

Relative electrical parameters of 5000A-12V power supply

Input Voltage

3-phase AC380V±10%50HZ.

Input Current

101A

Input Power

66.6KW

Output Power

60KW

Output Voltage

012V

Output Current

05000A

Voltage Regulation

≤±1%

Current Regulation

≤±1%

Rated efficiency

≥90%

Power factor

≤0.90

Ripple coefficient

≥3%

Output waveform

High frequency pulse square wave

I/O Interface

RS485 (must be specified when ordering)

Operating environment

-1540

Storage temperature

-2050

Insulation resistance



Input - output:≧5MΩ

Input - housing:≧5MΩ

Output - housing;≧5MΩ

Insulation strength

Input - outputAC1500V,10mA, one minute;

Input - housingAC1000V,10mA, one minute;

Insulation class

Class B

Protection degree

IP20

Cooling system

Forced air-cooled

Operating condition

24-hour operation at full load

Protection mode

Prompts for phase failure, overheating, overcurrent and fault protection.





Price Terms︰ FOB Ningbo, Shanghai
Payment Terms︰ TT
Lead Time︰ 15 days
Standards Certificate︰ CE, ISO9001

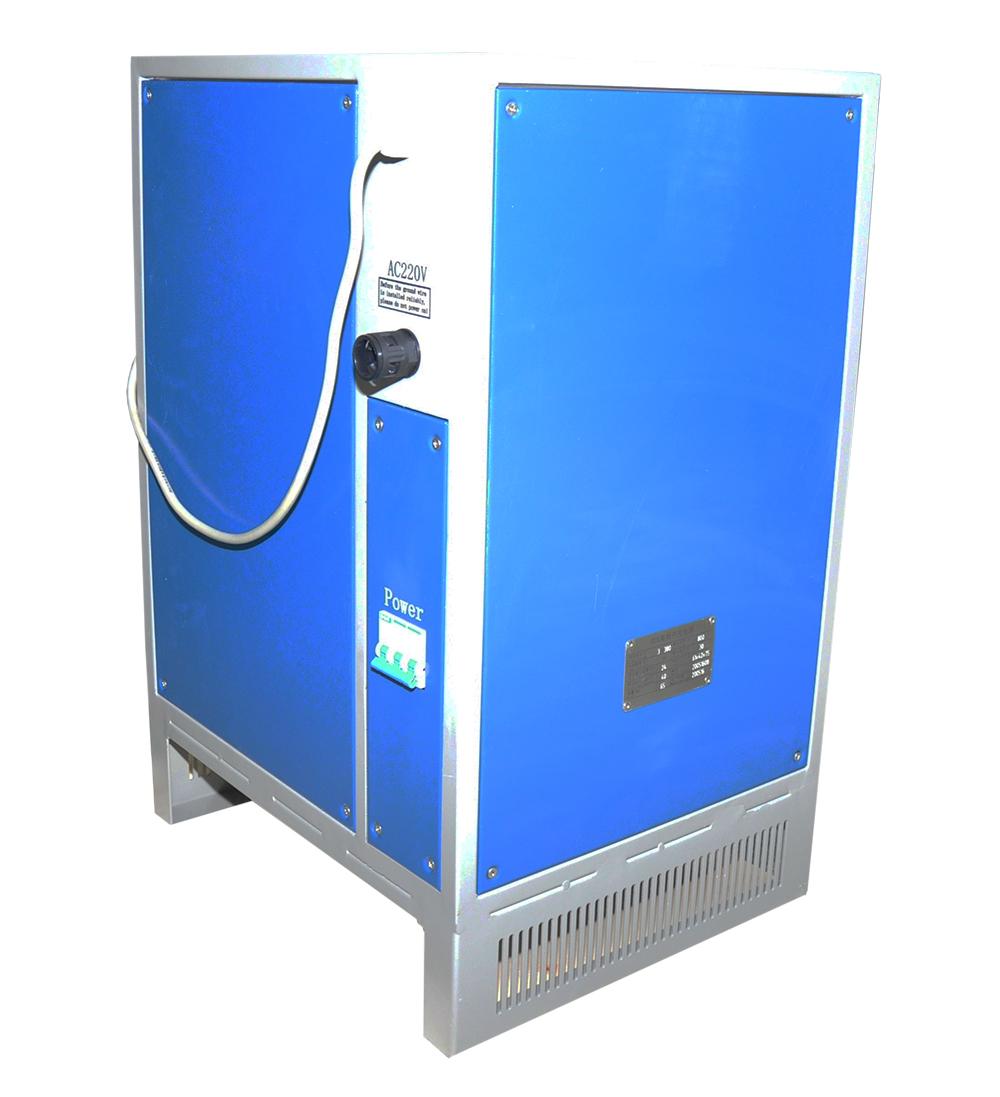

Product Image

electroplate power supply 10000A/15VDC ac to dc power supply for electroplatingelectroplate power supply 10000A/15VDC ac to dc power supply for electroplating

 electroplating rectifier for switching power supply electroplating rectifier for switching power supply
