42Kwh lithium battery home integrated energy storage system

Model No.︰


Brand Name︰


Country of Origin︰


Unit Price︰

US $ 14900 / pc

Minimum Order︰

1 pc

Share on:

Product Description

42Kwh lithium battery home integrated energy storage



Product introduction:

This product is composed of high quality lithium iron phosphate core (series-parallel connection) and advanced BMS management system. It adopts master-slave mode, which is convenient for monitoring and controlling the input and output system. The charging and discharging are independent, it can control the charging current of the AC charger and solar controller according to the battery temperature, voltage and SOC to better protect the battery cells from overcharging, overheating and discharging. It has high reliability and long life, products developed for applications such as solar energy storage, industrial and commercial energy storage, household energy storage, charging piles, data room and other applications.

The product adopts integrated design, higher integration, saving installation space; adopts domestic well-known brand high performance lithium iron phosphate cathode material, good core consistency, design service life of more than 10 years; the input and output circuit breakers are equipped with circuit breakers, which are safer and more reliable, front wiring, convenient installation and maintenance, easy operation; various functions, with single over-voltage/under-voltage, primary and secondary alarm protection, charge/discharge overcurrent, high temperature, low temperature, insulation and short circuit protection and recovery functions; strong compatibility, seamless docking with Invertersolar charge controller, AC/DC charger, charging piles and other major equipment; communication interface forms, CAN2.0 and so on can be customized according to customer needs, convenient system remote monitoring and flexible use. High energy, low power lithium electric equipment, achieve higher energy supply, lower energy consumption, and reduce environmental pollution; adopt all-round, multi-level battery protection strategy and fault isolation measures to ensure the safe operation of the system.

Product advantages:

lAll-in-one design, high integration and space saving installation

lUsing high-performance lithium iron phosphate cells, laser welding, good cell consistency, designed service life of more than 10 years

lCharging and discharging are controlled separately, which is convenient and reliable to control charging and discharging. The discharge port will not be disconnected when over-charging, and the charging port will not be disconnected when over-discharging, the system has good stability

lMaster-slave mode, passive equalization, can manage the equalization resistance, can set the equalization start voltage difference, and monitor the equalization resistance temperature, more intelligent and safe, and reduce the impact of barrel effect on system energy storage

lBMS adopts NXP(USA) automotive-grade high-performance chips, with strong anti-interference, good reliability and wide temperature range

lCAN2.0 communication interface, has the advantages of strong real-time performance, long transmission distance, strong anti-electromagnetic interference ability

lSystem parameters can be set through the host computer, such as fan start/stop temperature, charger maximum current setting, charge and discharge current correction, SOC correction, with insulation leakage detection function to prevent oil leakage and short circuit of the cell

lIntegrate solar controller, AC charger, BMS communication control, more safe and reliable;

lCell temperature management, can be automatically controlled with the air conditioner heater according to the cell condition to make the cell works at the most suitable temperature, and can be linked with the fire protection system as needed




Type of cell

LiFePO4 (Lithium iron phosphate)

Battery configuration

3.2V 105AH 125PCS

Rated capacity(KWH)


Nominal capacity (AH)


Nominal voltage (VDC)


Operating voltage range (VDC)


Recommended Charge Voltage (VDC)


Recommended discharge cutoff voltage (VDC)


Recommended charge current(A)


Max Charge Current (A)


Recommended discharge current (A)


Max Discharge Current (A)


Optimal Operating Temperature (℃)


Max Operating Temperature Range (Charge)


Max Operating Temperature Range (Discharge)


Solar Charge Controller Input

Maximum. Input voltage of solar arrayVdc


Battery system voltage


Maximum power of solar array


Maximum charge currentA


Working temperature


AC/DC Charger Input

AC Input rated voltage (Vac)

400V three phase

AC Input voltage range (Vac)


Rated charging power


Maximum output current


DC Output voltage range (Vdc)

400Vdc (100~750V adjustment)

Working temperature


System parameter

Protection level


Control system


Communication interface



5" LCD, English

Cooling system

Fan cooling

Working Altitude (m)


Reference Weight (Kg)


Reference size (D*W*H mm)


Price Terms︰ FOB Shanghai
Payment Terms︰ TT
Lead Time︰ 20 days
Standards Certificate︰ CE, ISO9001

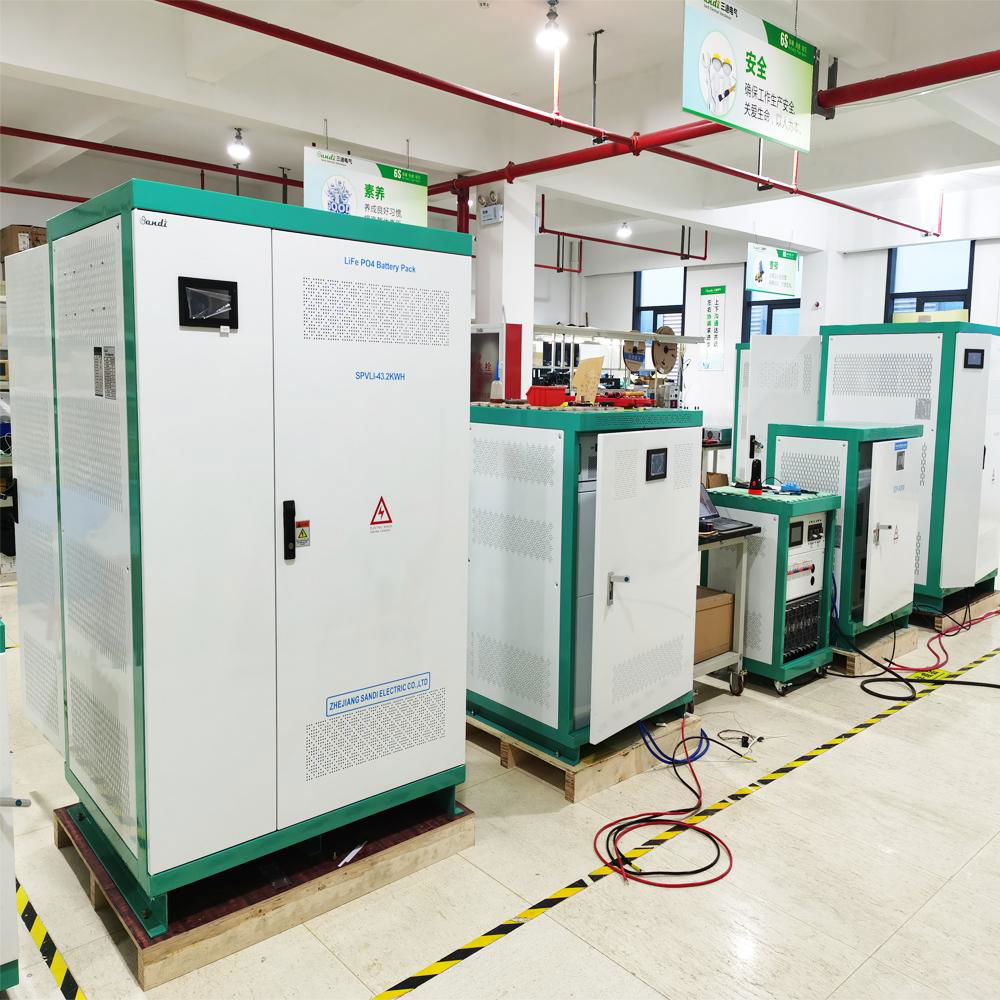

Product Image

42Kwh lithium battery home integrated energy storage system42Kwh lithium battery home integrated energy storage system

Solar Lithium Battery Home Energy Storage SystemSolar Lithium Battery Home Energy Storage System

LiFePO4 Battery ESS Energy Storage SystemLiFePO4 Battery ESS Energy Storage System

Lithium Lifepo4 Battery CabinetLithium Lifepo4 Battery Cabinet
