60kW Digital Phase Converter 220VAC single phase to 380VAC three phase converter

Model No.︰

SDT-60KW

Brand Name︰

SANDI

Country of Origin︰

China

Unit Price︰

US $ 12000 / pc

Minimum Order︰

1 pc

Share on:

Product Description

60kW Digital Phase Converter 220VAC single phase to 380VAC three phase voltage converter 3 phase AC motor inverter



60kW Digital Phase Converter 220VAC single phase to 380VAC three phase voltage converter 3 phase AC motor inverter

Single Phase to 3 Phase Converter

The SDT series single-phase to three-phase converter,  adopted AC-DC-AC circuit structure and using  SPWM modulation control technology, which can convert ordinary single-phase power to industrial three-phase power. After through SDT series single-phase to three-phase converter power conversion, the three-phase power output is standard pure sine wave, the harmonic distortion rate(THD) is less than 2%, totally  meet the national standards of three-phase power  quality, applicable to all types of load.

The SDT series single-phase to three-phase converter can solve production inconvenience because of some  areas with the three-phase electric power restricitions, also solved some user requirements that can’t apply for  the three-phase electric because of space limitation



Technical Features:

1) The input voltage, output voltage, frequency and phase can be custom made.

2) Two kinds of start mode: Step Down Voltage Start and Variable Frequency StartVFD is especially used for taking 3 phase inductive load more easily. This function is very convenient for users and also reduce frequency converter’s usage, which reduced the cost of equipment investment, easy to connect wires and control.

3) Output AC Power is suitable for all types of home appliances,electric tools, electric motors etc.

4) Using the fifth generation efficient IPM intelligent module from Japanese Mitsubishi, high efficiency and stable performance. It with powerful protection function for short circuit, over load, over temperature. Service life can reach 15-20 years.

5) Pure sine wave output. with good transient response, little harmonic distortion, higher conversion efficiency  and stable output voltage features.

6) Adopted low frequency isolated transformer, safe and reliable, single phase input power is completely isolatedfrom three phase output power, high conversion efficiency, high instantaneous power, stable performance and low load loss.

7) Adopts new magnetism material, largely reduce machine consumption, max efficiency up to 98%.

8) Adopts America DSP chip, safe and reliable.

9) Adopts black pure aluminum radiator, which confirms the best radiating performance

10) Converter has the function of filtering the grid disturbance and interference at the same time, which is a good performance of stabilized voltage and frequency power, to provide a more stable and pure power supply environment for the back end devices

11) Intelligent fan speed control system, low no-load loss

12) LCD display, high efficiency, easy installation

13) The output frequency 50Hz/60Hz can be set



Technical Data

Model

SDT-60KW

Isolation

Low Frequency Transformer

AC Input

Input rated voltage(VAC)

Single phase 220V/50HZ

Input voltage range

110/120/220/230/240Vac optional

Input rated current(A)

273A

AC Output

Rated AC output power

60KW

AC output waveform

Pure sine wave

Phases

Three phase, 4 wires

Output rated voltage

400VAC ±3%

Output voltage range

220/240/380/400/415/440Vac optional

Output Frequency

50Hz/60Hz±0.05Hz

Output rated current(A)

91A (per phase)

Power Factor(PF)

0.95

Overload Ability

150%, 10s

Efficiency

>93%

Waveform distortion rate (THD)

<3%(Linear load)

Crest Factor (CF)

3:1

Display

LCD

Electrical insulation properties

2500Vac, 1 Minute

Ambient temperature

-15~+55

Using environment humidity

0~90%,No condensation

Protection

Input under voltage, overvoltage, output over-current, short circuit, overheating etc.

Structure

Cooling method

Fan-cooled

Noise

<40dB

Degree of protection

IP20(indoor)

Using altitude(m)

≤3000

Dimensions (mm)

600x700x1200mm

Weight (Kg)

350Kg

CE Standard

EN60950-1:2006+A11:2009, EN61000-6-4:2007+A1:2001, EN61000-6-2:2005, EN61000-3-12:2005, EN61000-3-11:2000

60kW Digital Phase Converter 220VAC single phase to 380VAC three phase voltage converter 3 phase AC motor inverter

60kW Digital Phase Converter 220VAC single phase to 380VAC three phase voltage converter 3 phase AC motor inverter60kW Digital Phase Converter 220VAC single phase to 380VAC three phase voltage converter 3 phase AC motor inverter60kW Digital Phase Converter 220VAC single phase to 380VAC three phase voltage converter 3 phase AC motor inverter60kW Digital Phase Converter 220VAC single phase to 380VAC three phase voltage converter 3 phase AC motor inverter60kW Digital Phase Converter 220VAC single phase to 380VAC three phase voltage converter 3 phase AC motor inverter









Payment Terms︰ TT

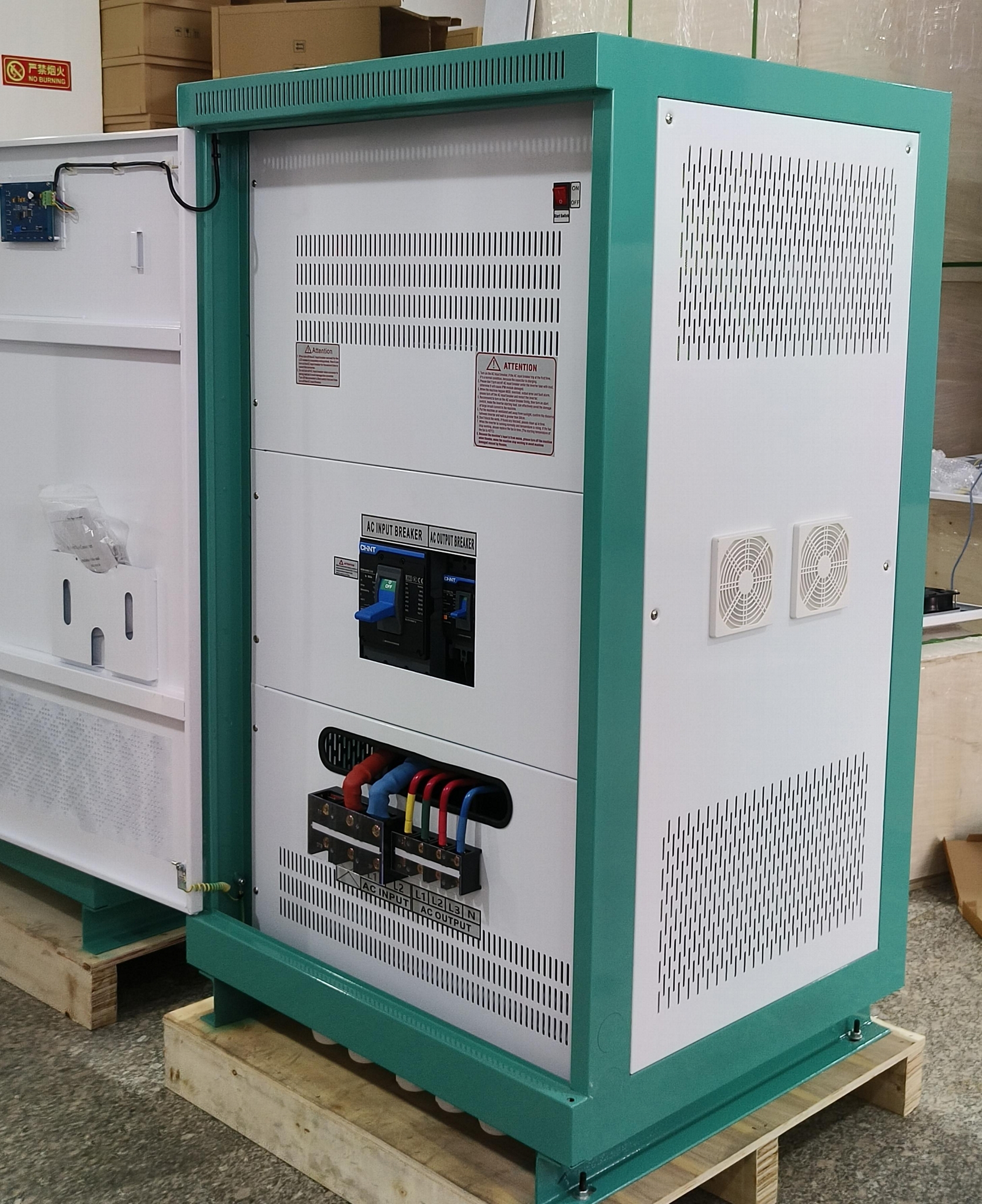

Product Image
