Intelligent Automatic Frequency-tracking ultrasonic welding machine generator

Model No.︰

SD-UG2500

Brand Name︰

SANDI

Country of Origin︰

China

Unit Price︰

US $ 3500 / pc

Minimum Order︰

1 pc

Share on:

Product Description

15KHZ 20KHZ Intelligent Automatic Frequency-tracking ultrasonic welding machine generator

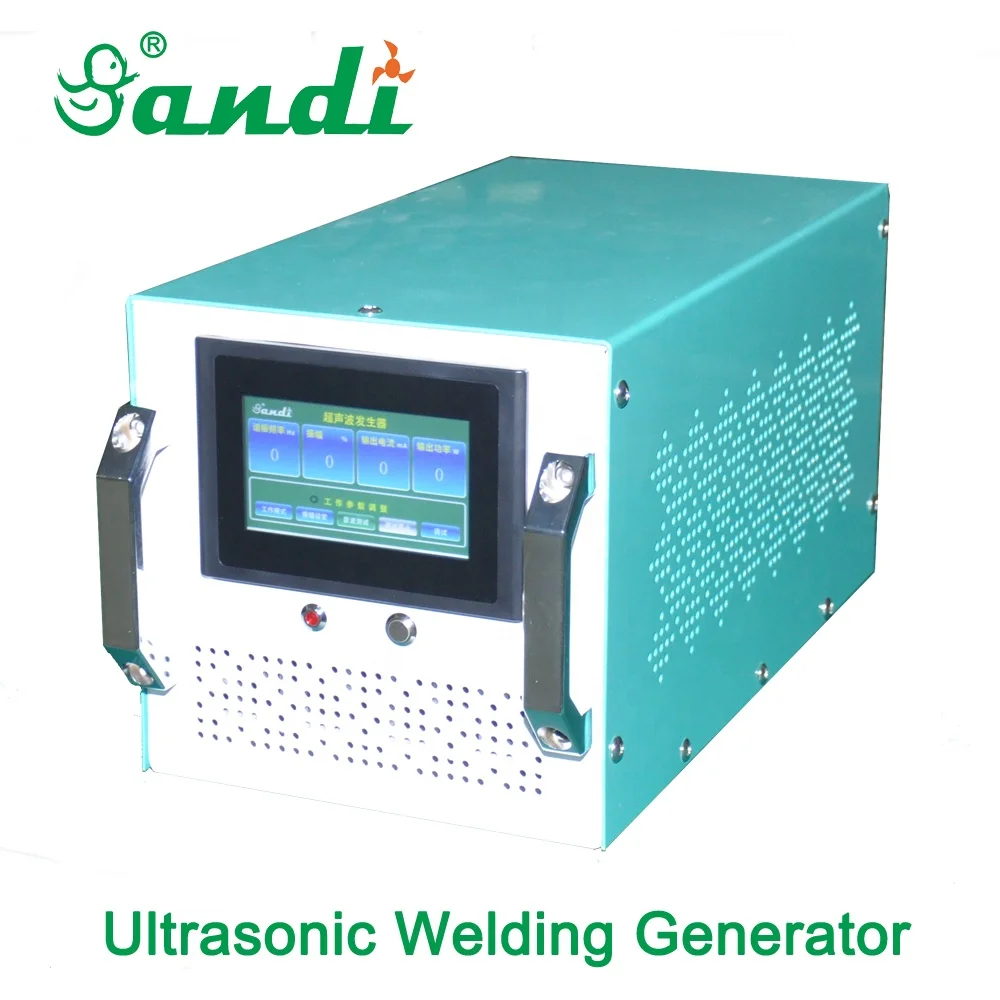

Brief introduction of intelligent SD-UG2500 ultrasonic welding generator

The intelligent SD-UG2500 ultrasonic generator of plastic welding machine has the advantages of compact structure, simple and elegant appearance, easy operation, flexible movement, and easy maintenance. The whole circuit is independently developed by our company. Adopted American TI DSP283 series CPU has the characteristics of wide frequency tracking range, high frequency tracking accuracy, large instantaneous ultrasonic energy output, strong force, fast response, high control accuracy, and strong anti-interference ability.

15KHZ 20Khz 3000W LCD display Ultrasonic Generator for face mask welding machine

The Intelligent SD-UG2500 plastic welding machine ultrasonic generator changes the input AC220V 50 / 60Hz AC power through the IGBT module to amplify the signal to a few thousand volt high voltage AC signal to drive the transducer to make it at its own resonance frequency resonance vibration. The control module can cut off the ultrasonic output when the ultrasonic generator fails, thus providing extremely high security for the ultrasonic equipment generator and the entire welding equipment.


15KHZ 20Khz 3000W LCD display Ultrasonic Generator for face mask welding machine15KHZ 20Khz 3000W LCD display Ultrasonic Generator for face mask welding machine

15KHZ 20Khz 3000W LCD display Ultrasonic Generator for face mask welding machine

15KHZ 20Khz 3000W LCD display Ultrasonic Generator for face mask welding machine



2.1 List of main technical parameters of ultrasonic generator



Item

Feature

Description

1

Dimensions

Length380mm×Width205mm×Height202mm

2

Net weight of host

6Kg

3

Output power

100-3200W

4

Display

4.3 inch high resolution color LCD touch screen

5

Working temperature

-20℃ ~ +65℃

6

THD

≤0.2%

7

Input power factor

≥80%

8

Working frequency

14-30KHz

9

Working power

AC190-AC240V 50Hz/60Hz

10

Mold frequency range

4000Hz(Taking 20KHz ultrasonic as an example, the mold frequency can be automatically tracked at 22500-18500KHz)

11

Automatic frequency tracking accuracy

0.1Hz

12

Power repeat consistency

≥97%

13

Remote terminal dynamic response time

≤10ms

14

communication method

CAN, RS485communication,support standard MODBUS RTU



 15KHZ 20Khz 3000W LCD display Ultrasonic Generator for face mask welding machine



Payment Terms︰ TT
